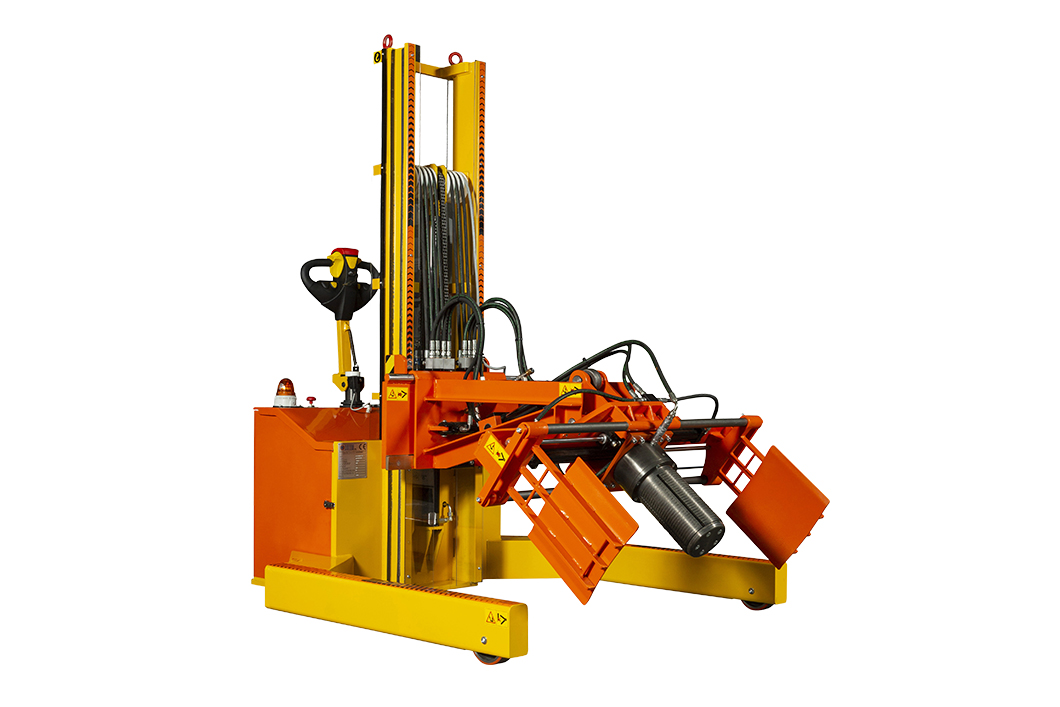

Reels turner electric trolley mod. 410 BMS

Description

The reels turner electric trolley mod. 410 BMS has been designed for raising and handling of wound reels.

The handling system consists of a basic frame on wheels, an electric pump, a piston translating in a vertical mechanical arm mounted on two vertical slides and one piston for the reel rotation.

The vehicle moves electrically through four large capacity batteries.

OPTIONAL

Gel batteries
Right-left clamp movement
Horizontal translation
Additional battery pack with quick extraction
Anti-stripping system
Double head for gripping 3 “or 6” coils
90° stroke

Require an estimate

Features

Interchangeable batteries

24 V operation (2 batteries of 12 V and 35 kg each)

Hydraulic movements

45° stroke

REELS: up to Ø 1500 mm

CLAMP: 3” or 6”

VELOCITY: 2,5 Km/h (reduced with high loads)

HIGH: from 260 to 2060 mm (relation to the weight to be lifted)

WEIGHT: ø 3’’ => 600 Kg ; ø 6’’ => 600 Kg

The technical data are purely indicative. Contact Svecom – P.E. for customized requests
