Trolleys, extractors and manipulators are the best solutions for industrial handling of expanding devices.
Svecom – P.E. industrial handling systems allow you to simplify the handling processes of expanding devices.
All our industrial handling system solutions are designed in order to facilitate devices moving, insertion and extraction, spools lifting, and other devices designed for winding and unwinding needs.
We entirely design and realize our industrial handling system solutions thanks to the contribution of groups of prepared technicians and expert engineers, who know the tissue and paper industry very well and take into account all the human and mechanic components in order to safely carry out the necessary operations. Download the technical catalogue.
Types and features of the industrial handling system solutions
Our industrial handling system solutions are made with quality metals and materials, and with the use of the best performing technologies in the field of mechanics for the tissue and paper sector.
Industrial shaft extractors, manual or electric handling trolleys, lifting platform systems and all the other industrial manipulators for the tissue and paper market, constitute a great help for simplyfying all the operations that include the movement, lifting and extraction of our products.
Svecom industrial handling systems work in an electro-hydraulic way, therefore exploiting the power of pressurized oil, but they can also be pneumatic, electric, or manual.
Every industrial handling machine carries out a specific function and each model has to be chosen according to the type of work for which it has to be used.

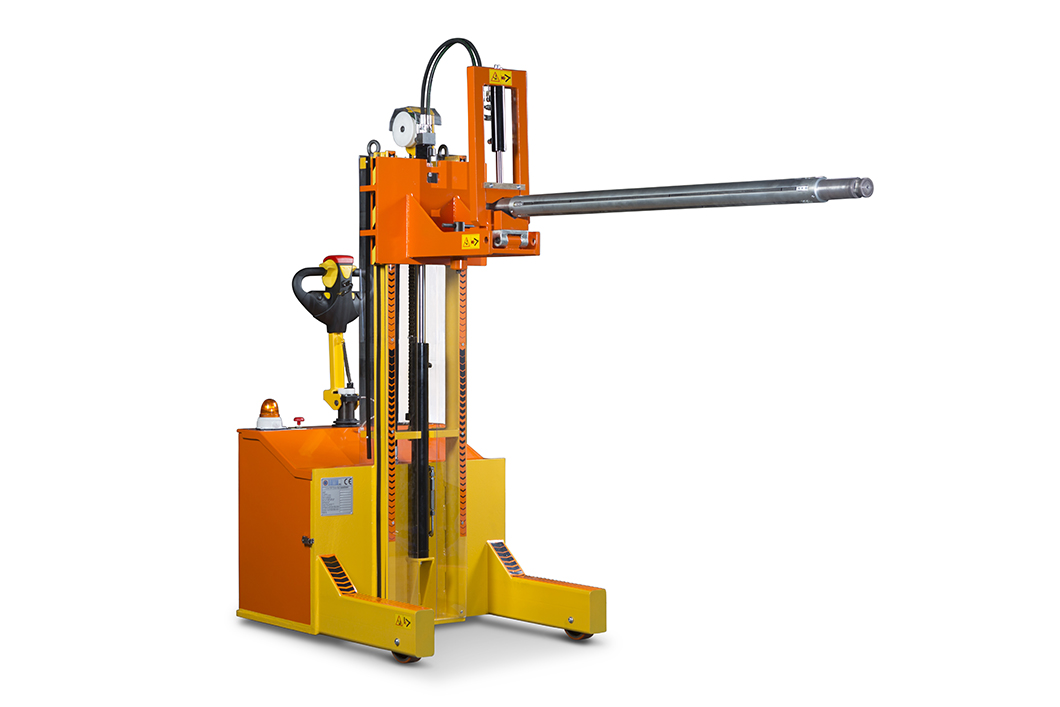

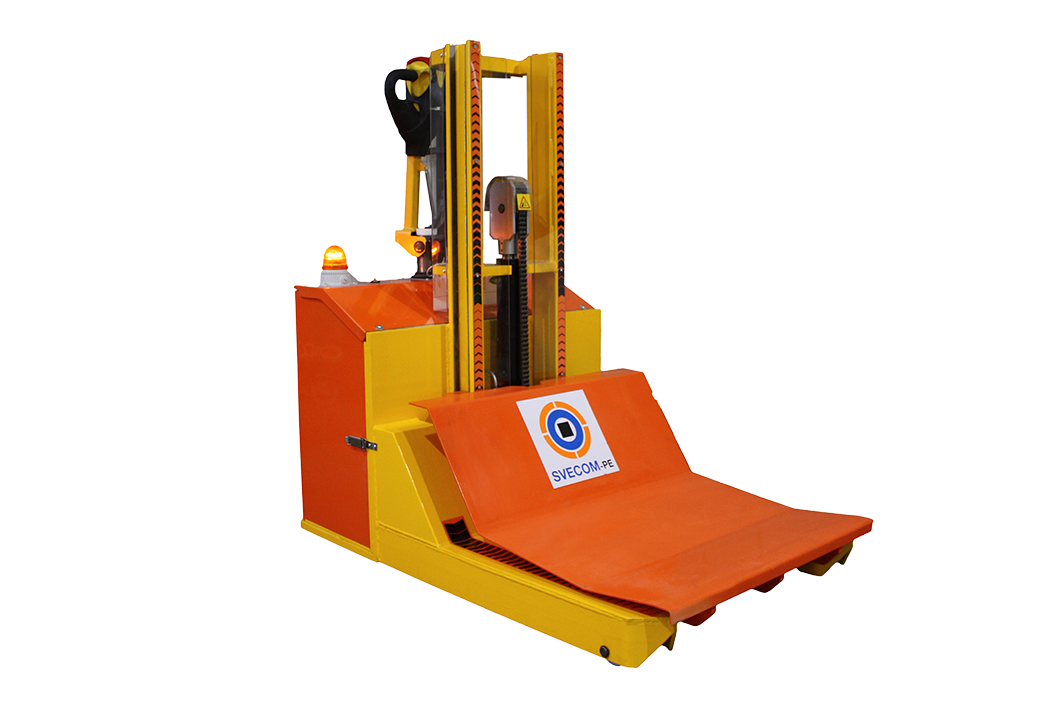

Industrial handling trolleys
Industrial handling trolleys can be manual or electro-hydraulic and each system acquires different characteristics according to the activity that has to be carried out. Lifting trolleys are equipped with a platform or slot on which the reel that has to be handled is charged, or they present appropriate clamping devices on which devices can be fastened. The industrial handling trolleys layout is designed for ascent and descent activities therefore they are mainly used for material withdrawing and deposit activities.

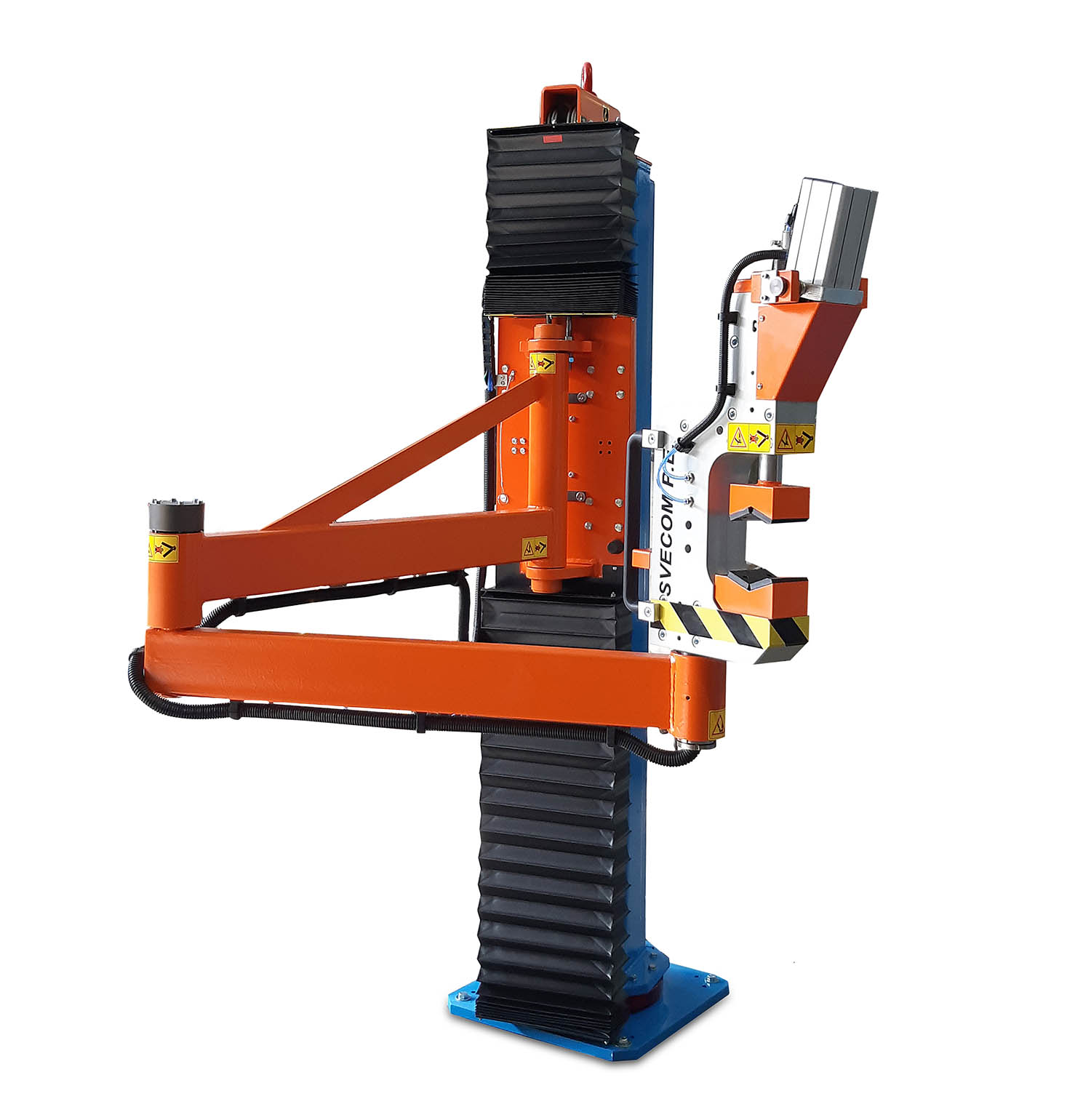

Industrial pneumatic manipulator
Industrial pneumatic handling manipulators are equipped with a mobile expanding arm capable of moving in every direction. The shaft manipulator realizes clamping movements and horizontal and vertical translation but can also rotate around its column.
The machine, designed for shaft handling, is one of our solutions to extract and insert expanding devices inside the cores of the spools. In order to facilitate this task and not weigh on the operator, the handling system independently realizes extraction and insertion movements along the horizontal axis, with vertical translation and manual or battery rotation around the column.
The handling machine operator will carry out machine supervision and assistance activities, operating during some fundamental steps, for example:
- Air gun inflation and deflation of rubber or steel ledges, that is the expanding elements that go in and out ot the shaft in order to make it run;
- positioning of the clamping device around the expanding shaft;
- Positioning of the chucks on the safety chucks for the fastening of the shaft on the machine.

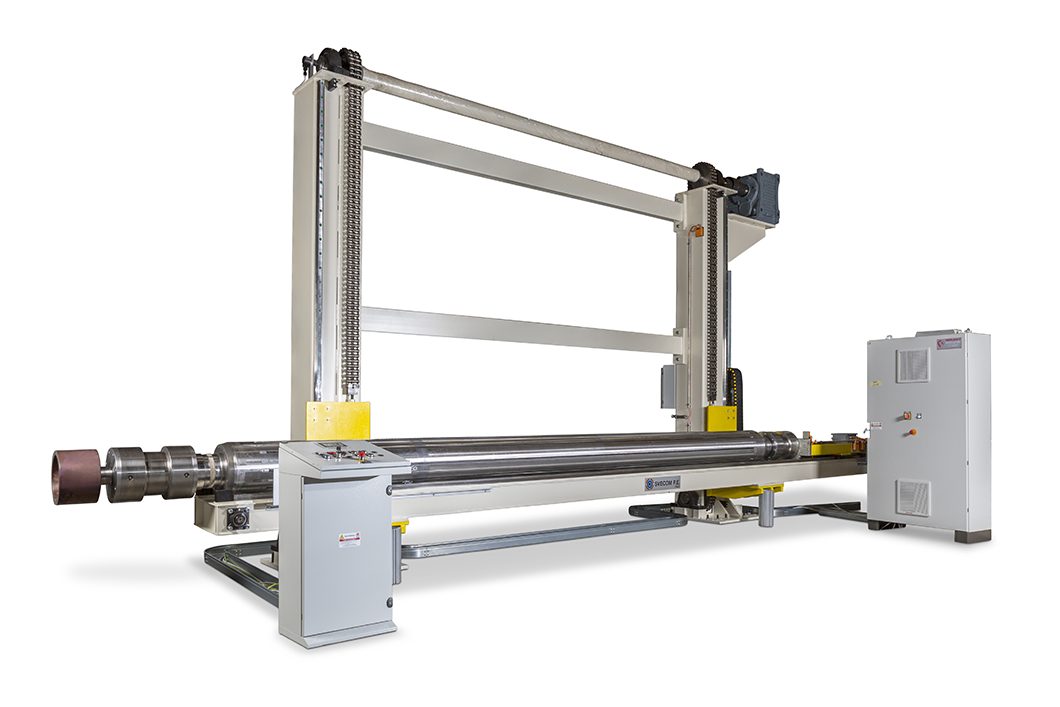

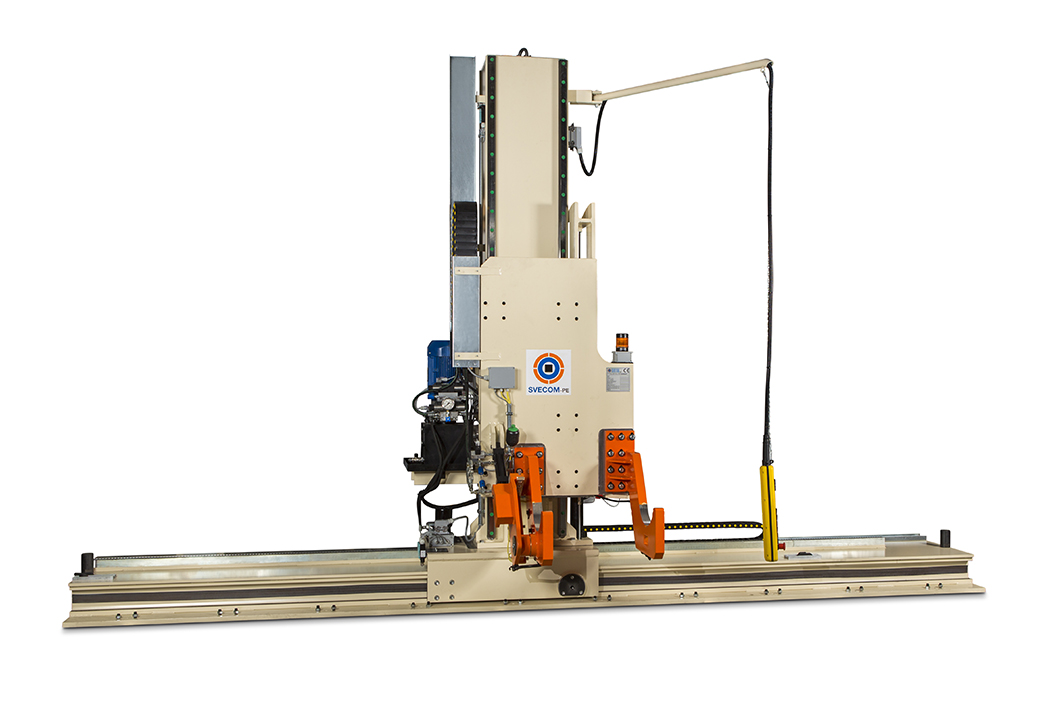

Single or double column extractors
The single or double column electro-hydraulic extractors are also designed for the insertion and extraction of devices from wound spools, but the machine presents different characteristics from those of the manipulator. The installation consists of two horizontal guides on which a trolley slides, blocking the shaft in order to lift it. The lifting movement is controlled by the columns positioned on the horizontal base (some systems have one central column, others can have two columns positioned on the extremities of the guides), and on each of them an addiotional trolley slides, allowing the upwards or downwards movement of our products.
The engine power is supplied by an electric engine and each function of the machine is handled through a control panel.

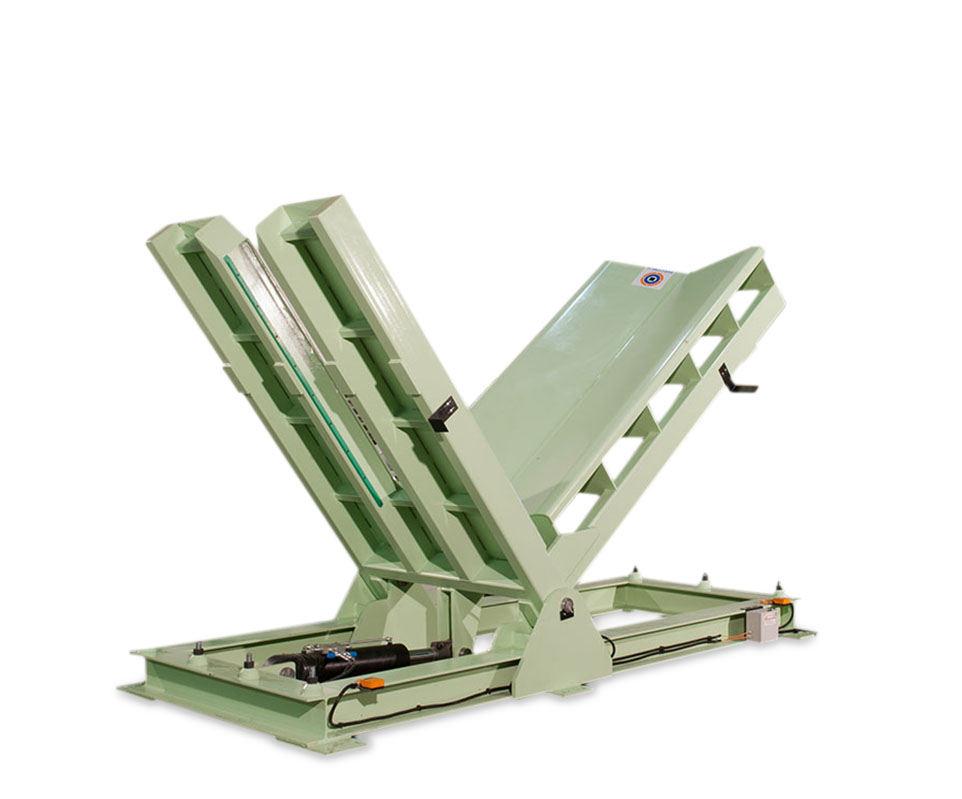

Tilting table for reels
Among our industrial handling systems, the tilting table is a solution that allows the reel 90 ° rotation, making it roll on the V saddle, designed specifically to avoid impacts, crashing and reel sliding during the operation.

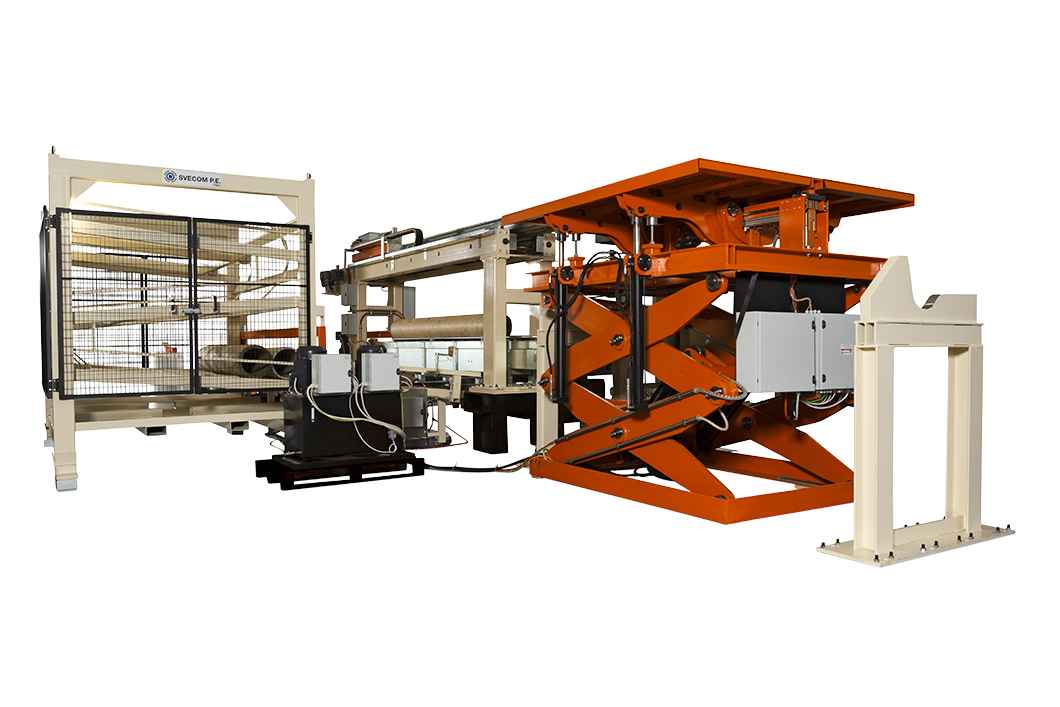

Complete extraction systems
We also produce complete extraction systems that include:
- Expanding shaft extractor and reel insertion system
- Core storage (cage designed for the deposit of the cores that will be inserted inside the spools);
- Lifting platform
These last systems are the solution to entirely handle the handling process of our products.
Handling system customization
All our machinery is customizable according to the client’s requests and needs, both for tissue and paper market, according to the weight and dimensions of the elements that have to be handled and of the application field. Industrial handling system solutions can be used in many industrial fields, such as:
- – tissue
- – converting
- – paper
- – nowovens
- – packaging
- – plastic film
- – food industry
- – aluminum
Every detail can be customized, and it is possible to choose to add a series of optionals according to the type of installation that is going to be realized.
Handling systems warranty and maintenance
All of our industrial handling system solutions have a 1-year warranty starting from the machine delivery moment and have CE marking (European Certification). In particular, they are PED certified (Pressure Equipment Directive), a particular qualification concerning the welding processes of industrial equipment.
Moreover, in order to ensure equipment efficiency, thanks to out wide sales network and to the worldwide presence of specialised agents, we are able to put at our client’s disposal check ups and inspections of the machines or of it parts.
