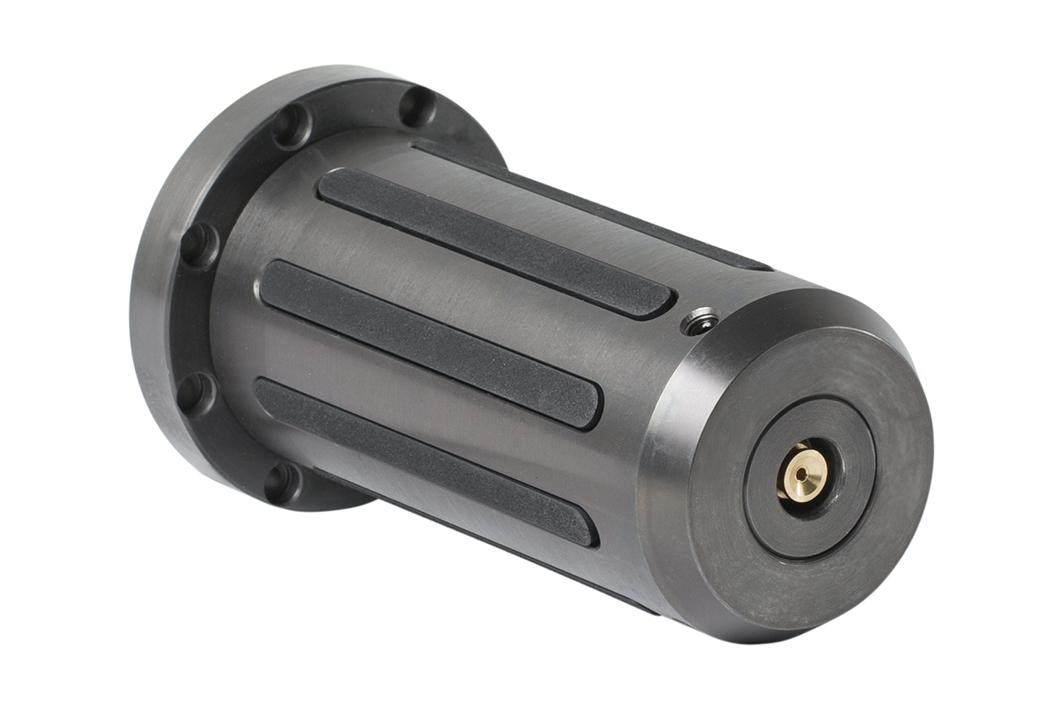

Pneumatic expanding chucks with ledges mod. 740 PL
Description
Pneumatic expanding chuck with ledges mod. 740 PL is recommended for unwinding and rewinding with cores, where perfect centering is needed.
The chuck body is available in steel or aluminium, and the expanders in steel, rubber, plastic or in combination, depending from the application. It is available with side flange for unwind and rewind stands mounting, or with a passing bore for passing bars mounting. Expansion is obtained by a system of inflatable tubes that are located beneath each row of expanders. Each tube exerts pressure equally to engage the expanders when air is applied, obtaining this way greater self-centring qualities. To get better performances in load capacity and transmittable torque, the number of expanders can be increased or, as an option, three or more 740/PL chucks can be connected in series and fed by one inflation valve.
Standard sizes available for this Model are listed below.
Require an estimateFeatures
Core diameter: from 70 to 600 mm
Chuck length: 250 mm
Expansion range: 8 mm on diameter
Air pressure: min. 5 bar (suggested 6 bar)
Contact SVECOM for Non-Standard requirements.
