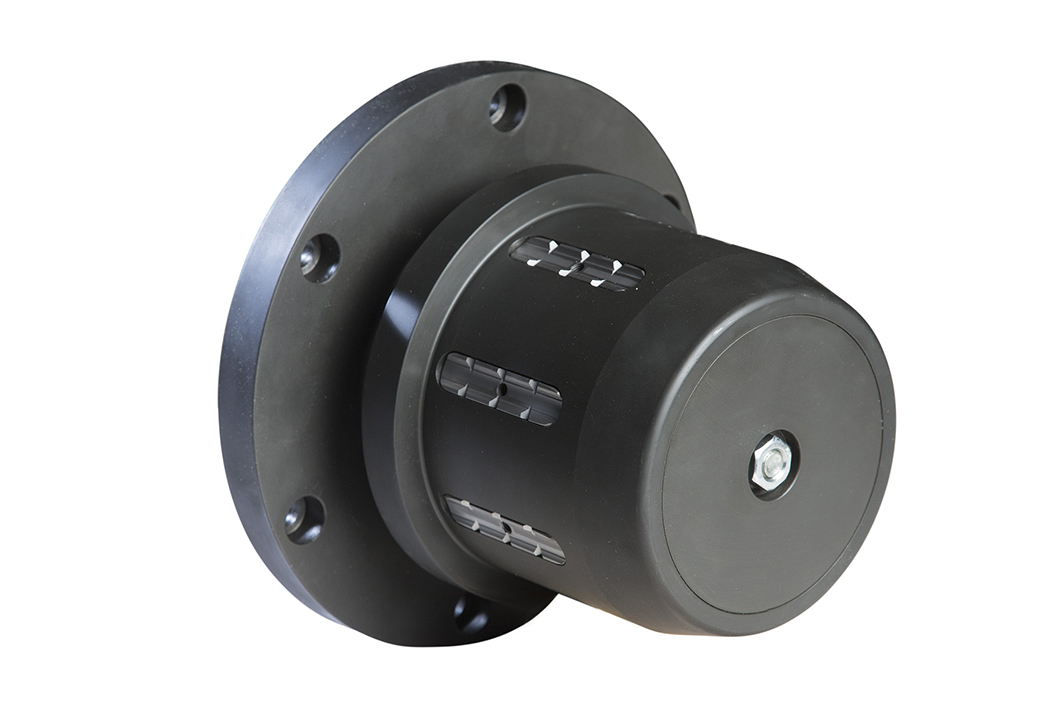

Mechanical axial expanding chucks with lugs mod. 714 AD

Description

Mechanical axial expanding chuck with lugs mod. 714 AD is recommended for unwinding and rewinding where perfect core centring is needed.

It is superior for higher weight, speed, and torque requirements. The body of the chuck and the expanders (leaves or lugs, depending on the application) are available in steel or rubber covered. The mounting flange is always custom made. Expansion is accomplished by the machine movable arms that mechanically engage the expanders. Return springs allow the complete lugs or leaves retraction when machine arms are opened. When running different core diameters, suitable interchangeable adaptors can be fitted onto one base chuck.

Standard sizes available for this Model are listed below.

Require an estimate

Features

Core diameter: from 70 to 600 mm

Chuck length: 210 mm

Expansion range: 10/12 mm on diameter

Contact SVECOM for Non-Standard requirements.
