Mechanical safety chucks with V squared shaped and tilting ring mod. 910

Description

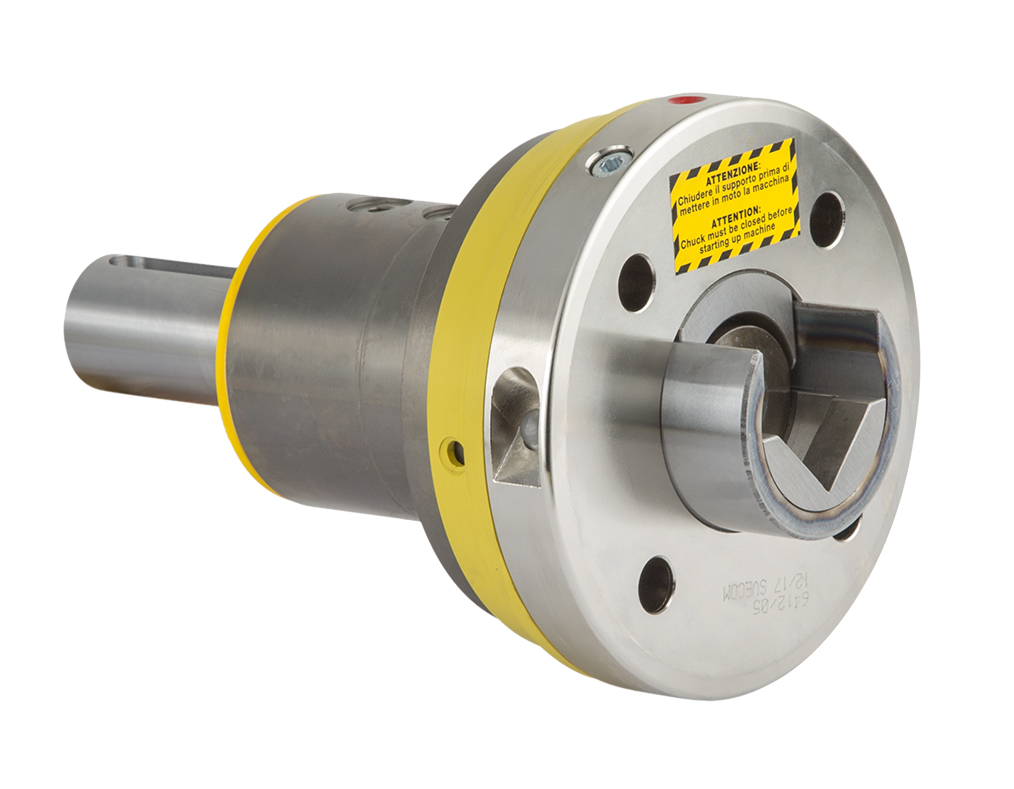

Mechanical safety chuck with V squared shaped and tilting ring mod. 910 is used to rewind or unwind material in rolls on expanding airshafts; they allow to load or unload rolls more easily without moving the airshaft directly.

Tilting safety chuck (tilting disc opening). Using with or without Shaft. Square/Square Coupling at 45°.

Several tilting and sliding models are available to suit different loads, any model can be both foot-mounted and flange-mounted.

Standard sizes available for this Model are listed below.

Require an estimate

Features

Capacity Perp Pair: up to 15.600 N (Reel weight)
Max Torque Transmittable: up to 1.000 Nm
Max Speed: 600 RPM
Square Standard Socket: from □ 30-40 to □ 30-50
Standard Shaft Diameter: from Ø 25-45 to Ø 45

Contact SVECOM for Non-Standard requirements.

Download pdf file

SERIES	CAPACITY PERP PAIR	MAX TORQUE	FIXING	USING	SQUARE MEASURE	COUPLING	TYPE
910 heavy	15.600 N	1.000 Nm	Flange	With or Without Shaft	30-40	Square/Square	KLPF1-0
910 heavy	15.600 N	1.000 Nm	Foot	With or Without Shaft	30-40	Square/Square	KLPP1-0
910 air inlet	15.600 N	1.000 Nm	Flange	With or Without Shaft	30-50	Square/Square	KLAPF1-0
910 air inlet	15.600 N	1.000 Nm	Foot	With or Without Shaft	30-50	Square/Square	KLAPP1-0

LEGENDA:

KL= Klapplager (Meccanico), P = Pesante, A = Air Inlet, F = Flangia, P = Piedino, 0 = Senza Alberino, 1 = Con Alberino
