Pneumatic safety chucks with round-squared / squared-squared shaped mod. 935 and 936

Description

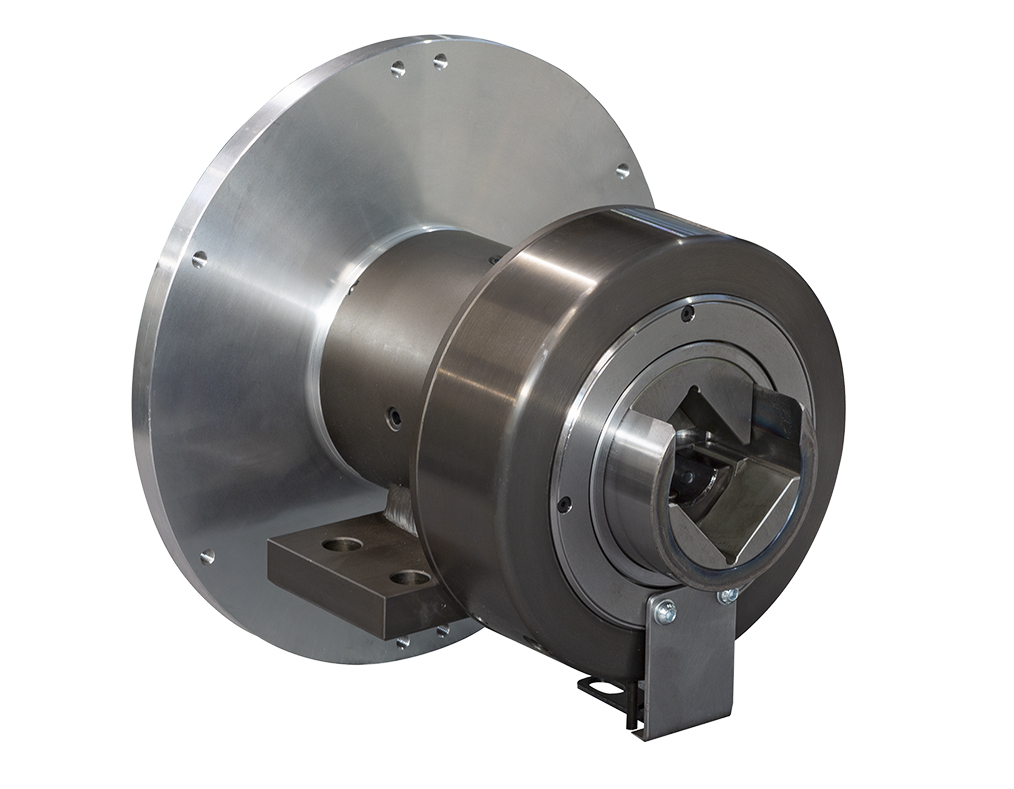

Pneumatic safety chuck with round-squared / squared-squared shaped mod. 935 and 936 is used to rewind or unwind material in rolls on expanding airshafts; they allow to load or unload rolls more easily without moving the airshaft directly.

Pneumatic Sliding safety chuck (sliding disc opening), with rotating or fixed head, with round/square ends, they are light or heavy. Use with or without shafts.

Several tilting and sliding models are available to suit different loads, any model can be both foot-mounted and flange-mounted.

Standard sizes available for this Model are listed below.

Require an estimate

Features

Capacity Perp Pair: from 15.600 N to 30.000 N (Reel weight)
Max Torque Transmittable: from 1.000 Nm to 1.300 Nm
Max Speed: from 1.200 RPM to 1.500 RPM
Square Standard Socket: from □ 35-50 to □ 40-55
Standard Shaft Diameter:  from Ø 25-45 to Ø 30-50



Contact SVECOM for Non-Standard requirements.

Download pdf file
SERIESCAPACITY PERP PAIRMAX TORQUEFIXINGUSINGSQUARE MEASURECOUPLINGTYPEpdf
935 light Rotating Head15.600 N1.000 NmFlangeWith or Without Shaft35-50Square/RoundPNLF1-0TR
936 light Fixed Head15.600 N1.000 NmFlangeWith or Without Shaft35-50Square/RoundPNLF1-0TF
935 light Rotating Head15.600 N1.000 NmFootWith or Without Shaft35-50Square/RoundPNLP1-0TR
936 light Fixed Head15.600 N1.000 NmFootWith or Without Shaft35-50Square/RoundPNLP1-0TF
935 heavy Rotating Head30.000 N1.300 NmFlangeWith or Without Shaft40-55Square/RoundPNPF1-0TR
936 heavy Fixed Head30.000 N1.300 NmFlangeWith or Without Shaft40-55Square/RoundPNPF1-0TF
935 heavy Rotating Head30.000 N1.300 NmFootWith or Without Shaft40-55Square/RoundPNPP1-0TR
936 heavy Fixed Head30.000 N1.300 NmFootWith or Without Shaft40-55Square/RoundPNPP1-0TF

LEGEND:

PNP = Pneumatic, L = Light, P = Heavy, F = Flange, P = Foot, 0 = Without Shaft, 1 = With Shaft, TR = Rotating Head (Mod.935), TF = Fixed Head (Mod.936)
