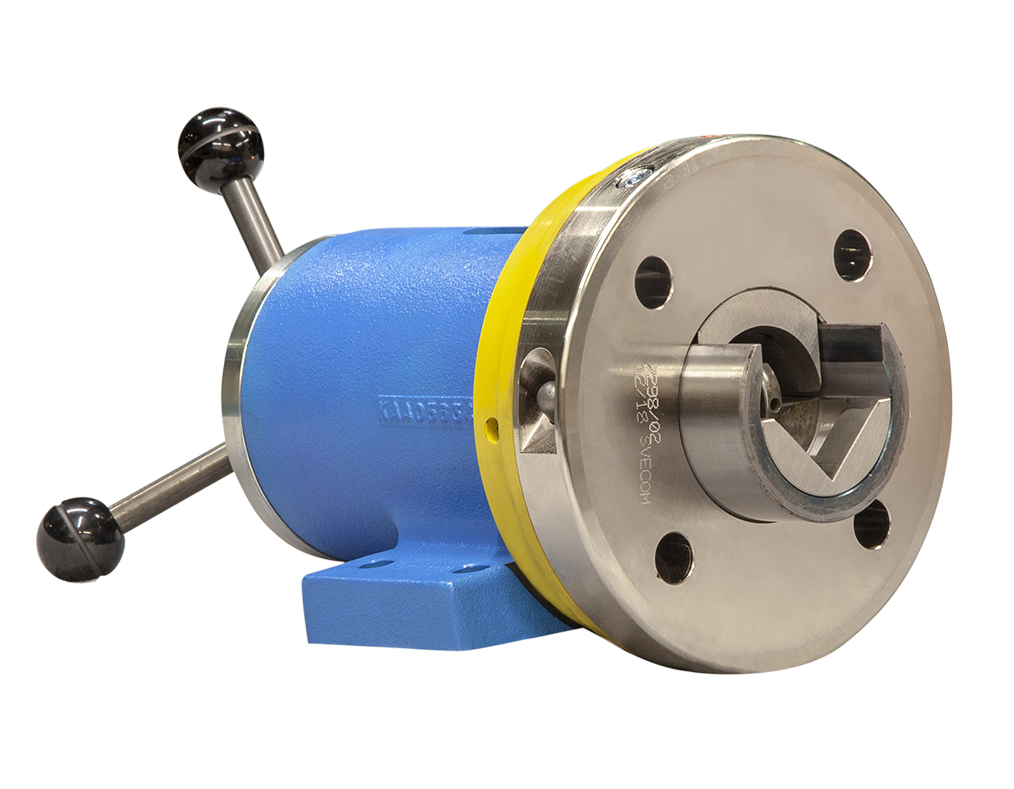

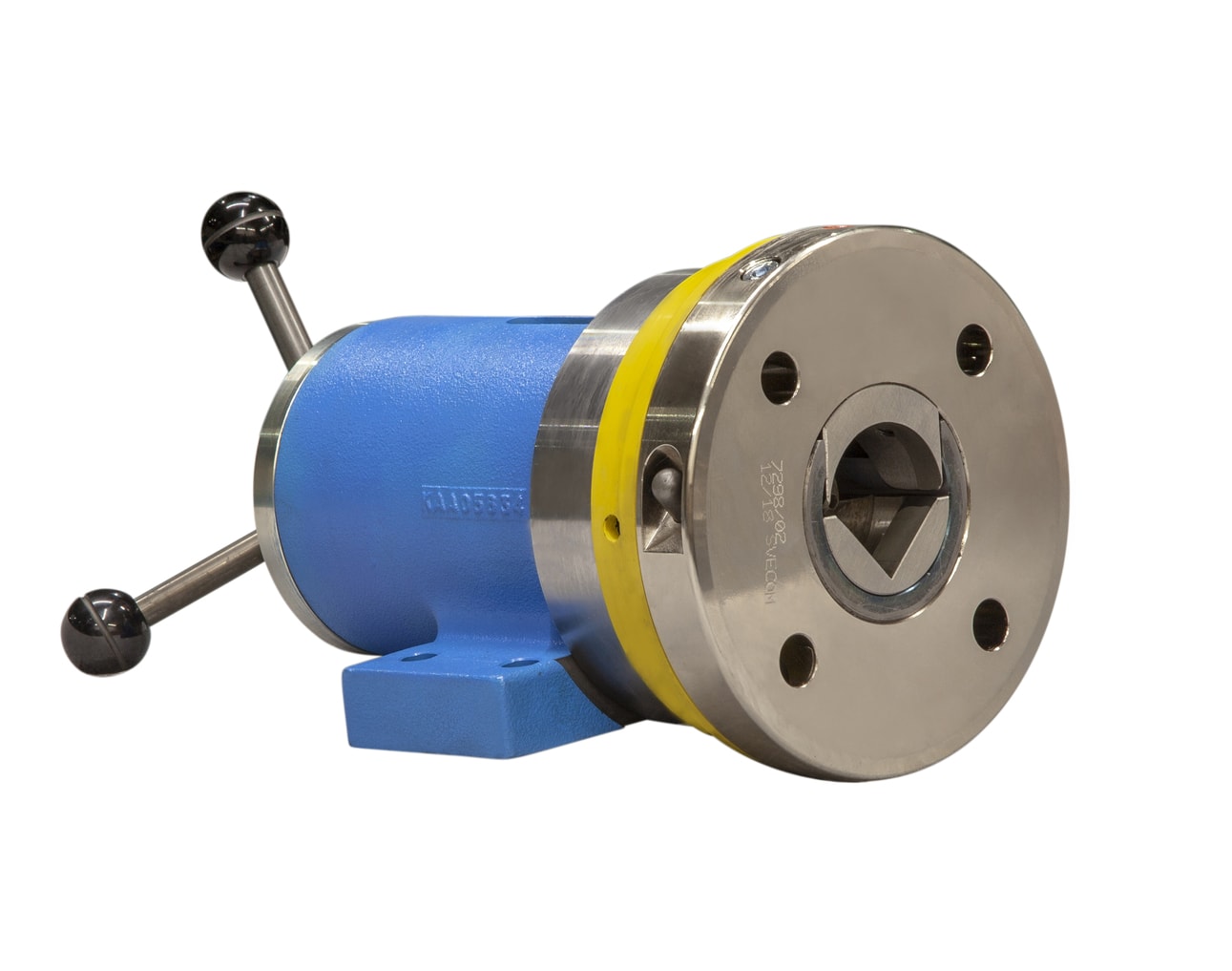

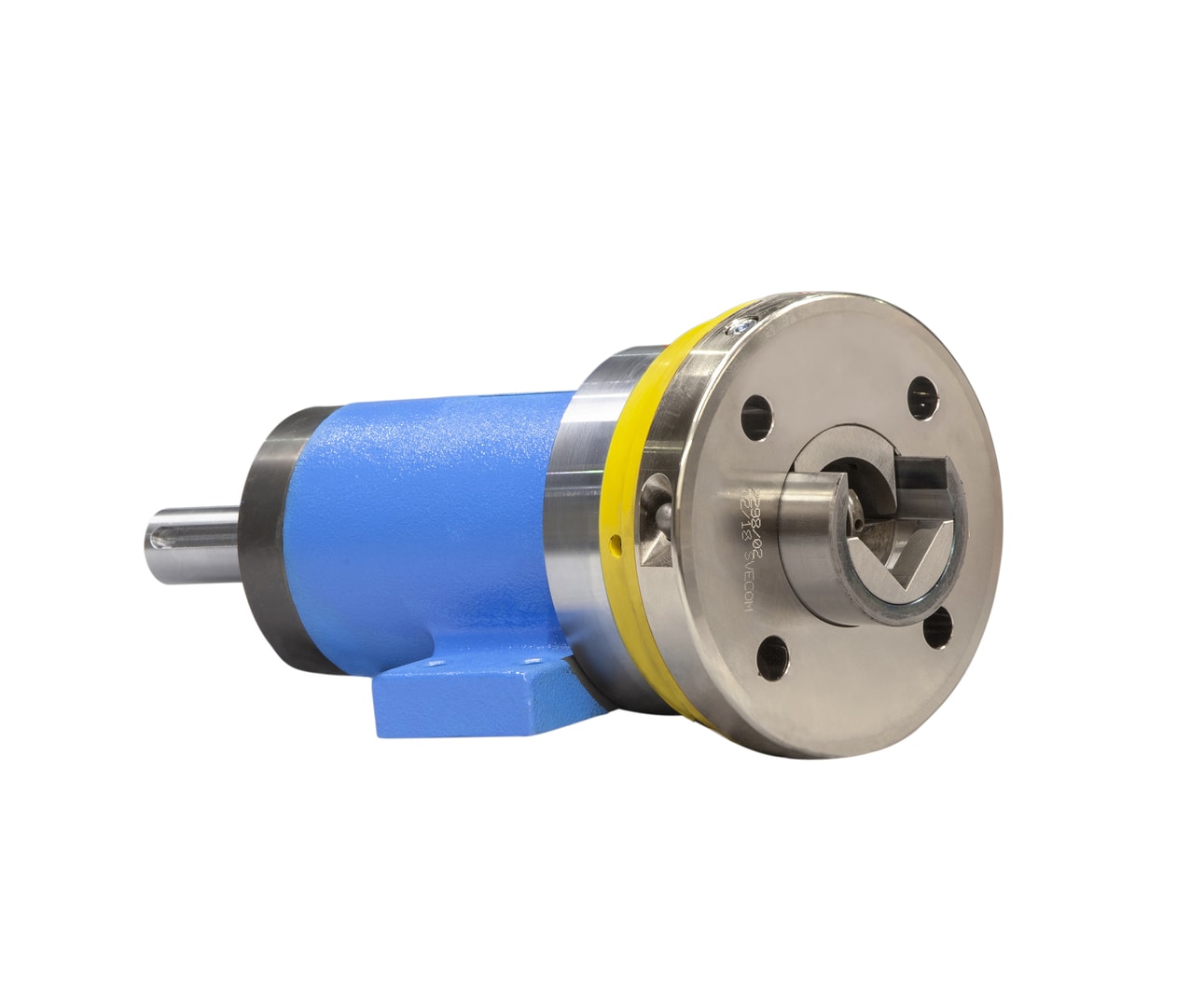

Self-closing mechanical safety chucks with sliding ring, axial movement and round-squared shaped mod. 951

Description

Self-closing mechanical safety chuck with sliding ring, axial movement and round-squared shaped mod. 951 is used to rewind or unwind material in rolls on expanding airshafts.

They allow to load or unload rolls more easily without moving the airshaft directly. Sliding safety chuck (sliding disc opening). With sliding and axial movement, the models are available to suit different loads. They are light or heavy. Square/Square or Square/Round Coupling. Using with Shaft or with Handwheels.

Several tilting and sliding models are available to suit different loads, any model can be both foot-mounted and flange-mounted.

Standard sizes available for this Model are listed below.

Require an estimate

Features

Capacity Perp Pair: from 15.600 N to 30.000 N (Reel weight)

Max Torque Transmittable: from 1.000 Nm to 1.300 Nm

Max Speed: from 1.200 RPM to 1.500 RPM

Square Standard Socket: from □ 30-42 to □ 40-55

Standard Shaft Diameter: from Ø 45-50 to Ø >=50

Contact SVECOM for Non-Standard requirements.

Download pdf file

951 KL – Self - closing mechanical safety chucks with sliding rings and axial movement

SERIES	CAPACITY PERP PAIR	MAX TORQUE	FIXING	USING	SQUARE MEASURE	COUPLING	TYPE
951 light	15.600 N	1.000 Nm	Flange	Shaft	30-42/35-50//31,75-44,45/38,1-50,8	Square/Round	KLLF1
951 light	15.600 N	1.000 Nm	Flange	Handwheel	30-42/35-50//31,75-44,45/38,1-50,8	Square/Round	KLLF2
951 light	15.600 N	1.000 Nm	Foot	Shaft	30-42/35-50//31,75-44,45/38,1-50,8	Square/Round	KLLP1
951 light	15.600 N	1.000 Nm	Foot	Handwheel	30-42/35-50//31,75-44,45/38,1-50,8	Square/Round	KLLP2
951 light Splined	15.600 N	1.000 Nm	Flange	Shaft	35-50	Square/Round	KLSLF1
951 light Splined	15.600 N	1.000 Nm	Foot	Shaft	35-50	Square/Round	KLSLP1
951 heavy	30.000 N	1.300 Nm	Flange	Shaft	40-55	Square/Round	KLPF1
951 heavy	30.000 N	1.300 Nm	Flange	Handwheel	40-55	Square/Round	KLPF2
951 heavy(With sensors)	30.000 N	1.300 Nm	Flange	Handwheel	40-55	Square/Round	KLPF2
951 heavy	30.000 N	1.300 Nm	Foot	Shaft	40-55	Square/Round	KLPP1
951 heavy	30.000 N	1.300 Nm	Foot	Handwheel	40-55	Square/Round	KLPP2
951 heavy Splined	30.000 N	1.300 Nm	Flange	Shaft	40-55	Square/Round	KLSPF1
951 heavy Splined	30.000 N	1.300 Nm	Foot	Shaft	40-55	Square/Round	KLSPP1
951 heavy Splined(With sensors)	30.000 N	1.300 Nm	Flange	Shaft	40-55	Square/Round	KLSPF1

LEGEND: KL= Safety Chuck (Mechanical), L = Light, P = Heavy, SL = Splined Light, SP = Splined Heavy, F = Flange, P = Foot, 1 = With Shaft, 2 = With Handwheel
