Pneumatic safety chucks with round-squared shaped and axial movement mod. 955 and 956

Description

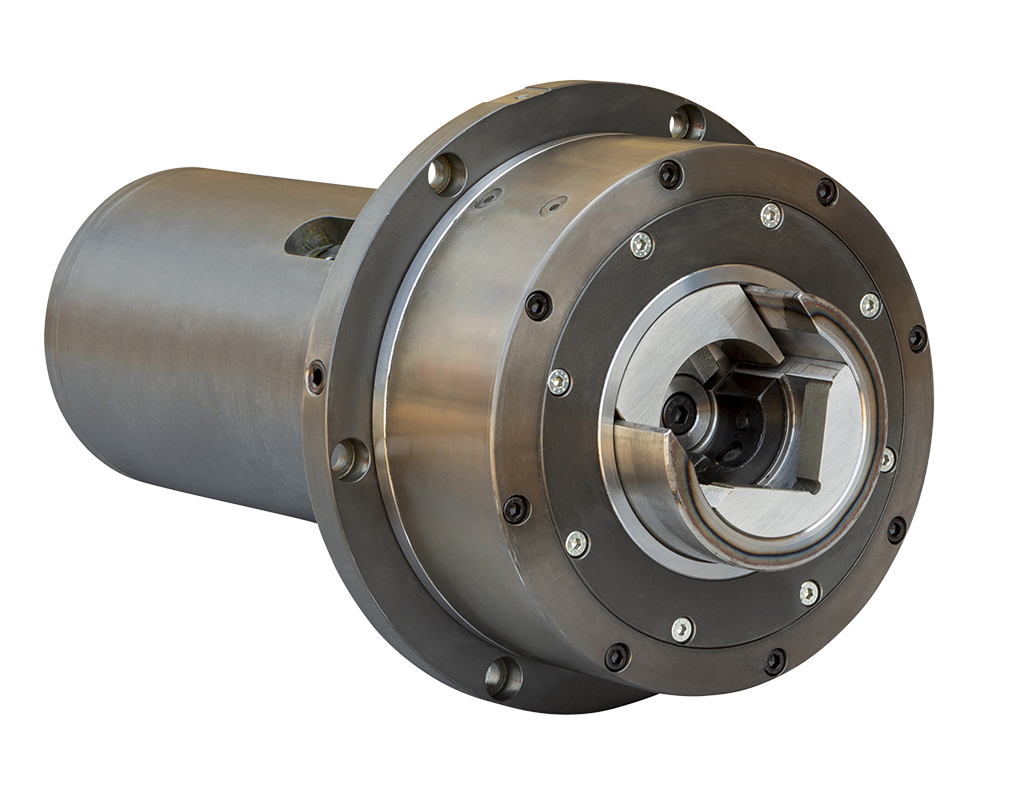

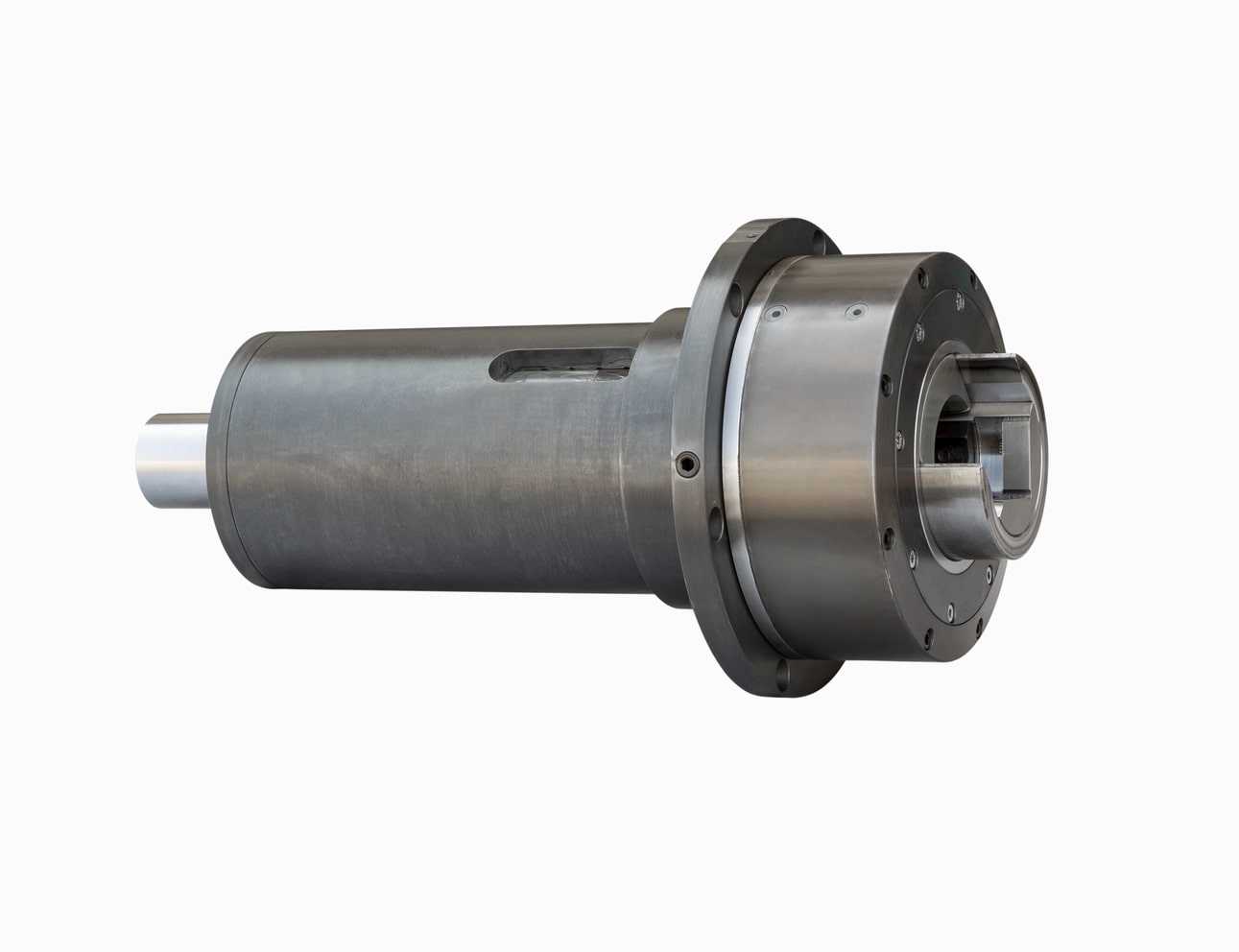

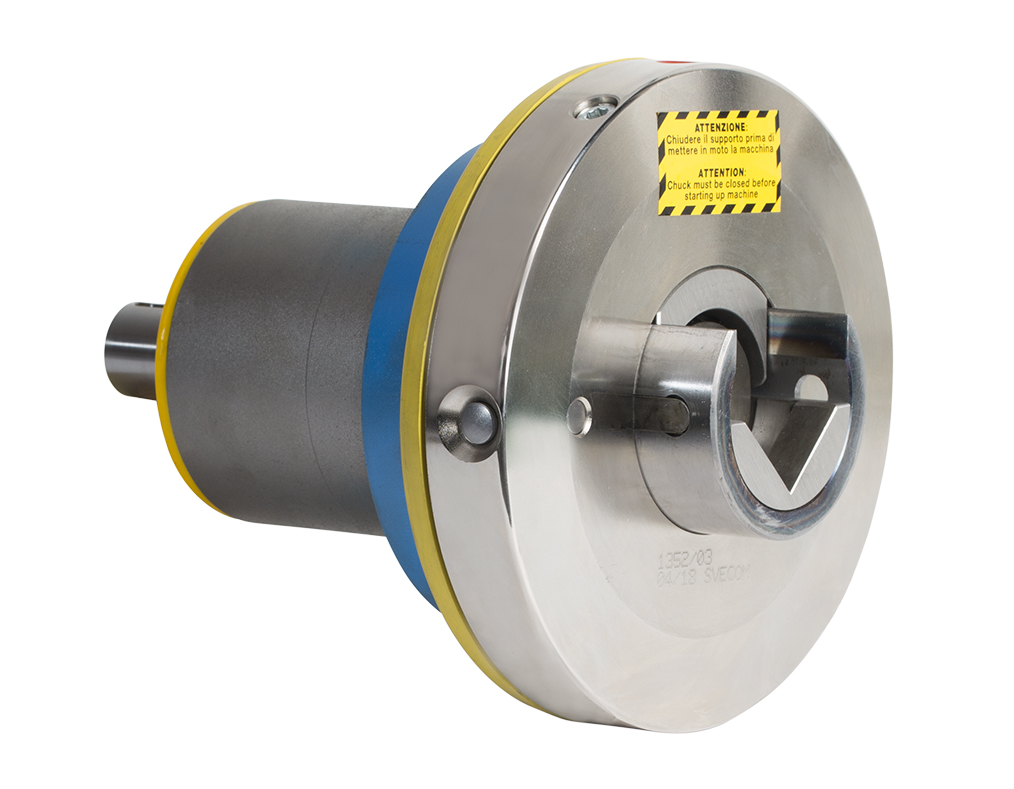

Pneumatic safety chuck with round-squared shaped and axial movement mod. 955 and 956 is used to rewind or unwind material in rolls on expanding airshafts.

They allow to load or unload rolls more easily without moving the airshaft directly. Sliding safety chuck (sliding disc opening). With sliding and axial movement, the models are available to suit different loads. They can have Rotating or Fixed Head, Square/Square or Square/Round Coupling. They are light or heavy.  Using with Shaft or with Handwheels.

Several tilting and sliding models are available to suit different loads, any model can be both foot-mounted and flange-mounted.

Standard sizes available for this Model are listed below.

Require an estimate

Features

Capacity Perp Pair: from 15.600 N to 30.000 N (Reel weight)

Max Torque Transmittable: from 1.000 Nm to 1.300 Nm

Max Speed: from 1.200 RPM to 1.500 RPM

Square Standard Socket: from □ 35-50 to □ 40-55

Standard Shaft Diameter:  from Ø 25-45 to Ø 30-50



Contact SVECOM for Non-Standard requirements.

Download pdf file
SERIESCAPACITY PERP PAIRMAX TORQUEFIXINGUSINGSQUARE MEASURECOUPLINGTYPEpdf
955 light Rotating Head15.600 N1.000 NmFlangeShaft35-50Square/RoundPNLF1TR
956 light Fixed Head15.600 N1.000 NmFlangeShaft35-50Square/RoundPNLF1TF
955 light Rotating Head15.600 N1.000 NmFlangeHandwheel35-50Square/RoundPNLF2TR
956 light Fixed Head15.600 N1.000 NmFlangeHandwheel35-50Square/RoundPNLF2TF
955 light Rotating Head15.600 N1.000 NmFootShaft35-50Square/RoundPNLP1TR
956 light Fixed Head15.600 N1.000 NmFootShaft35-50Square/RoundPNLP1TF
955 light Rotating Head15.600 N1.000 NmFootHandwheel35-50Square/RoundPNLP2TR
956 light Fixed Head15.600 N1.000 NmFootHandwheel35-50Square/RoundPNLP2TF
955 heavy Rotating Head15.600 N1.000 NmFlangeShaft35-50Square/RoundPNPF1TR
956 heavy Fixed Head30.000 N1.300 NmFlangeShaft40-55Square/RoundPNPF1TF
955 heavy Rotating Head30.000 N1.300 NmFlangeHandwheel40-55Square/RoundPNPF2TR
956 heavy Fixed Head30.000 N1.300 NmFlangeHandwheel40-55Square/RoundPNPF2TF
955 heavy Rotating Head30.000 N1.300 NmFootShaft40-55Square/RoundPNPP1TR
956 heavy Fixed Head30.000 N1.300 NmFootShaft40-55Square/RoundPNPP1TF
955 heavy Rotating Head30.000 N1.300 NmFootHandwheel40-55Square/RoundPNPP2TR
956 heavy Fixed Head30.000 N1.300 NmFootHandwheel40-55Square/RoundPNPP2TF

LEGEND: PN = Pneumatic, L = Light, P = Heavy, F = Flange, P = Foot, 1 = With Shaft, 2 = With Handwheel, TR = Rotating Head (Mod.955), TF = Fixed Head (Mod.956)
